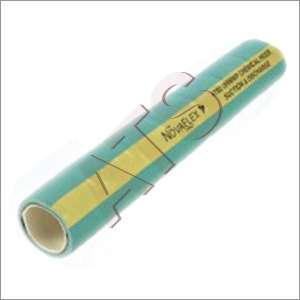

Novaflex 4700 UHMW Chemical Suction and Dischare Hose

Name: Novaflex 4700 UHMW Chemical Suction and Dischare Hose
Brand: ATS HYDRAULIC ENGINEERS
Price: 1000 INR
Availability: InStock

Get a Price/Quote

MOQ : 25 Meters

Novaflex 4700 UHMW Chemical Suction and Dischare Hose Specification

Application
For Industrial & Workshop Use

Usage
Discharge Oil and Fuel

Size
1-3 Inch

Material
FDA

Product Type
Novaflex 4700 UHMW Chemical Suction & Dischare Hose

Color
Green

Novaflex 4700 UHMW Chemical Suction and Dischare Hose Trade Information

Minimum Order Quantity
25 Meters

Payment Terms
Telegraphic Transfer (T/T), Cash in Advance (CID), Cheque, Cash Advance (CA)

Supply Ability
1000 Meters Per Day

Delivery Time
1 Week

Main Export Market(s)
Australia, North America, South America, Eastern Europe, Western Europe, Middle East, Africa, Central America, Asia

Main Domestic Market
All India

About Novaflex 4700 UHMW Chemical Suction and Dischare Hose

Novaflex 4700 UHMW chemical suction & Discharge hose

A lightweight flexible chemical transfer hose designed for almost every common industrial chemical used in industry today. Nonstaining UHMW tube.

Construction

Tube: Clear Ultra High Molecular Weight polyethylene.
Reinforcement: Multiple plies of high tensile textile with dual helix
Cover: Green abrasion resistant green EPDM (Available in blue, Yellow black and grey, white)
Temperature Range: up to -40 ^oF to 250 ^oF.
Consult chemical resistant chart.
No for steam service
Can be open end steam cleaned

Part No.	I.D.	O.D.	Plies	MBR (in)	Vacuum HG	WP psi	WT/ LBS/ FT
4700CU- 07500-00	3/4	1.19	2	3.5	29"	200	0.58
4700CU - 01000-00	1	1.47	2	4	29"	200	0.63
4700CU - 01250-00	1 1/4	1.80	2	4.5	29"	200	0.80
4700CU - 01500-00	1 1/2	2.08	2	5	29"	200	1.06
4700CU - 02000 - 00	2	2.58	2	8	29"	200	1.33
4700CU - 02500-00	2 1/2	3.03	2	10	29"	200	1.78
4700CU - 03000 - 00	3	3.61	2	16	29"	200	2.12
4700CU - 04000 - 00	4	4.61	2	24	29"	200	2.83

Warning: Elevated temperatures can change the chemical resistance rating of 4700. Check the chemical resistance charts published by Novaflex to verify that the chemical to be transferred is rated for use with the UHMWP tube at the temperature & concentrations listed. Most chemicals become more aggressive the higher the temperature, reducing the ability of the tube material to withstand them. Compatibility information is available from Novaflex. If no data exists, it is the users responsibility to determine if the hose is compatible with the chemical to be transferred.

Never use Novaflex 4700 above the rating listed by Novaflex.
