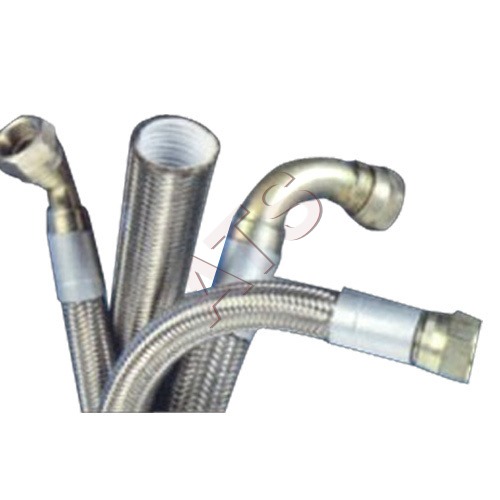

PTFE Convoluted Flexible Hoses
PTFE Convoluted Flexible Hoses is widely used to transfer various high pressure liquid substances from one port to another. Our offered PTFE Convoluted Flexible Hoses are used in several Industries for various purposes and are available in various specifications. These Flexible Hoses are renowned for salient attributes like easy fittings, high performance, and high durability.
Hose Construction
PTFE Convoluted Inner Core with AISI 304 Stainless steel Wire Braid Reinforcement.
Temp. Range
-60oC To +200oC
Application
Chemical Transfer, Steel Processing. Paint Spraying, Fuel and Lubricant Handling, Hydraulic Systems, Plastic Molding Machines, Food Processing, Marine & Transportation Industries
End Connection
Can Be Manufactured As Per Customer's Specification with PTFE LINED
| HOSE SIZE | EXT. DIA | MAX. W.P. | MIN. B.P. | MIN. BEND | |
| I.D. | MAX. MM | @ 20oC KG/CM2 | @ 20oC KG/CM2 | RADIUS MM | |
| INCH | MM | ||||
| 01/04/11 | 6 | 13.46 | 140 | 550 | 18 |
| 03/08/11 | 10 | 16 | 120 | 480 | 20 |
| 01/02/11 | 13 | 19 | 110 | 420 | 25 |
| 05/08/11 | 16 | 23 | 80 | 310 | 50 |
| 03/04/11 | 20 | 27.5 | 69 | 256 | 65 |
| 1 | 25 | 34.5 | 64 | 240 | 89 |
| 1 1/4 | 32 | 39.4 | 60 | 212 | 150 |
| 1 1/2 | 38 | 45.9 | 53 | 190 | 200 |
| 2 | 50 | 59.4 | 37 | 140 | 250 |
| 2 1/2 | 63.5 | 78 | 24 | 96 | 300 |
| 3 | 76.2 | 93.4 | 17 | 69 | 375 |
| 4 | 101.5 | 123.2 | 10 | 41 | 600 |
 |
