PTFE hoses

PTFE hoses
PTFE hoses
Product Code : 119
Product Description

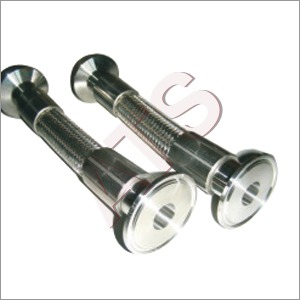

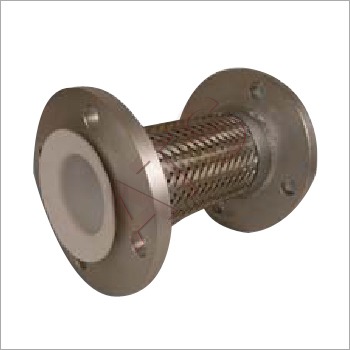

PTFE Hoses

  • PTFE combines the corrosion
  • Resistance of PTFE with the pressure and safety
  • Characteristics of stainless steel, corrugated hose and braid
  • Available with standard, metric or special flanges. Units can
  • Also be provided with floating flanges to facilitate installation.
  • For environmentally corrosive applications, these units can also be provided with vulcanized elastomeric coverings on the Outer braid.

Flange IPS and Nom. Hose I.D(in)

Overall length(in)

Max working press @ Room Temp (psi)

Approx. Wt (Ibs) per unit

2-1/2

9

250

16

3

9

250

19

3-1/2

9

200

23

4

9

200

19

6

11

200

32

6

11

200

40

8

12

200

62

10

13

150

101

12

14

125

153

14

14

100

200
