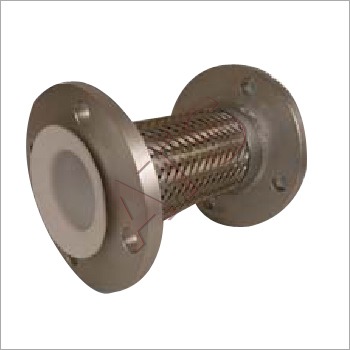

PTFE Lined Metal Pump Connectors

PTFE Lined Metal Pump Connectors
PTFE Lined Metal Pump Connectors
Product Code : 50
Product Description

PTFE Lined Metal Pump Connectors

Resistance of PTFE with the pressure and safety Characteristics of stainless steel, corrugated hose and braid Available with standard, metric or special flanges. Units can Also be provided with floating flanges to facilitate installation. For environmentally corrosive applications, these units can Also be provided with vulcanized elastomeric coverings on the outer BRAID.

Technical Specification

Flanged Metal Pump Connector Specifications

Flange IPS and Nom. Hose I.D. (in)

Overall Length (in.)

Max Working Press @ Room Temp (psi)

Approx. Wt. (ibs.) Per Unit

2-1/2

9

250

16

3

9

250

19

3-1/2

9

200

23

4

9

200

19

6

11

200

32

6

11

200

40

8

12

200

62

10

13

150

101

12

14

125

153

14

14

100

200
