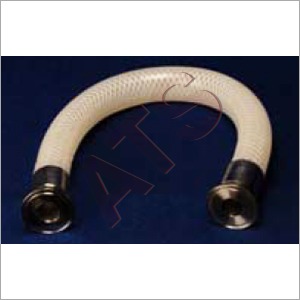

Polyster reinforced Silicone Transparent Braided Hoses for Food, Pharma, Chemical, Medical, Heavy Engineering, Thermal Power Stations, and PSUs. These Braided Hoses are made from 100% pure Silicone Rubber by using fully Automatic state-of-the art machineries and technologies. We have already catering these products to all the major Pharmaceutical Companies in India.
Braided Hoses are manufactured under stringent quality control and having the following distinguished features-
Our Standard Size Of Braided Hoses ( Conforms To Usp Class Vi Requirement And Fda)
Available Sizes
Size in (inches) | ID in mm | OD in mm | Working Pressure (Mpa) | Max length (M) |
1/4 | 6 | 13 | 1 | 100 |
3/8 | 9 | 16 | 0.9 | 50 |
1/2 | 12 | 20 | 0.9 | 50 |
3/4 | 19 | 27 | 0.7 | 30 |
1 | 25 | 35 | 0.7 | 30 |
1 1/4 | 32 | 42 | 0.6 | 20 |
1 1/2 | 37 | 47 | 0.6 | 15 |
2 | 50 | 62 | 0.5 | 10 |
2 1/2 | 60 | 73 | 0.5 | 10 |
![]() |
